Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Vandsec
  • Model Number: VK-N304X Series
  • Type: IP Camera
  • Style: Bullet Camera
  • Sensor: CMOS
  • Technology: NetWork
  • Special Features: Vandal-proof
  • Sensor:: 1/4" Progressive Scan CMOS 1.0/1.3/2.0 Megapixel
  • Lens:: 3.6mm
  • IR Range:: 20m
  • IR Led:: 15pcs for Dome; 36pcs for Waterproof
  • Video Input:: 4CH x 720P/ 4CH x 960P/4CH x 1080P
  • Video Output:: HDMI 1CH out; VGA 1CH out
  • Playback:: 1080P x 1CH
  • Support:: Onvif 2.0, Dual stream, 2 USB 2.0 port
  • Digital zoom:: both in live view and playback
  • P2P:: XMeye

Packaging & Delivery

Packaging Details 4ch DIY Security Camera Kit
4 x Cameras,
1 x NVR,
1 x USB Mouse,
1 x IR Controller ,
5 x Power Adapters
Delivery Time usually 2-5 days depend on Qty-4ch DIY Security Camera Kit

Vandsec DIY Security Camera Kit H.264 NVR Kits -Onvif IP Camera + NVR with Built-in Monitor!





Product Description

Parameters of Vandsec 4CH 720P/1080P Wifi Security Camera Kit:

 IP Camera Specification:

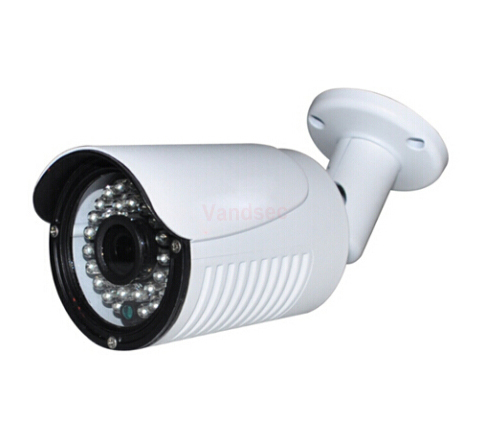

 IP66 Weatherproof Wireless Bullet HD IP Camer
Ø5×36pcs IR Led,  IR Range: 30M

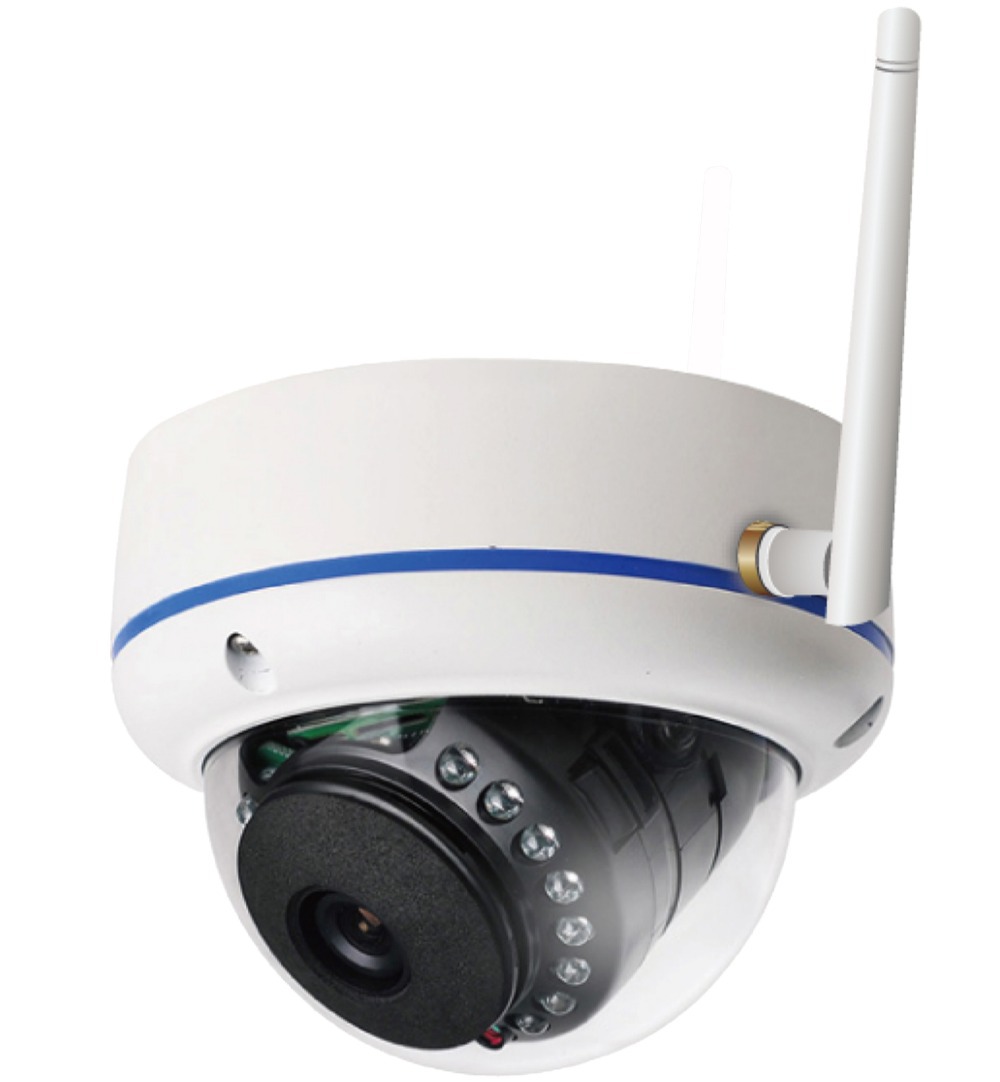

Vandalproof Wireless IR HD IP Dome Camera;
Ø5×15pcs IR Led,  IR Range: 20M
ModelVN-GB10-WVN-GB13-WVN-GB20-WVN-IGB10-WVN-IGB13-WVN-IGB20-W
Image Sensor1/4" 1.0 Megapixel CMOS1/3" 1.3 Megapixel CMOS1/2.5"  2 Megapixel CMOS1/4" 1.0 Megapixel CMOS1/3" 1.3 Megapixel CMOS1/2.5"  2 Megapixel CMOS
Chipset SolutionOV9712 + Hi3518CAR0130 + Hi3518CHI 3516C + IMX222OV9712 + Hi3518CAR0130 + Hi3518CHI 3516C + IMX222
Resolution1280×720 (720P)1280×960 (960P) 1920×1080(1080P)1280×720 (720P)1280×960 (960P) 1920×1080(1080P)
Minimum Illumination3300mV/Lux-sec 5500mV/Lux-sec 6200mV/Lux-sec 3300mV/Lux-sec 5500mV/Lux-sec 6200mV/Lux-sec
S/N Ratio39db44db51db39db44db51db
Frame Rate1.0 Megapixel @ 25FPS1.3 Megapixel @ 25FPS2 Megapixel @ 25FPS1.0 Megapixel @ 25FPS1.3 Megapixel @ 25FPS2 Megapixel @ 25FPS
Focus Modefixed
Day/NightIR cut filter with auto switch, IR sensor.
Video Outputanalog video out(optional), CVBS supported, PAL/NTSC (configurable)
Network1 RJ45 Ethernet interface, 10/100M adaptation
DelayWithin 0.3S
Video CompressionH.264 compression ,dual stream ( 0.1M-6Mpbs adjustable)
ProtocolProtocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
OnvifSupport Onvif 2.5
User PermissionMulti-user Classification Management
Power/CurrentDC 12V/1A
Consumption3.0W
Lens3.6mm Board Lens/F2.0
IR StatusIR LED: Ø5X36PCS  IR range: 30M IR LED: Ø5X15PCS  IR range: 20M
Dimension (mm)92mm x 62mm x 58mmØ142mm x 100mm
Weight (g)650g600g
 Temperature-10℃~ +60℃
Humidity0%-90%RH,Without Condensation



NVR Specification:

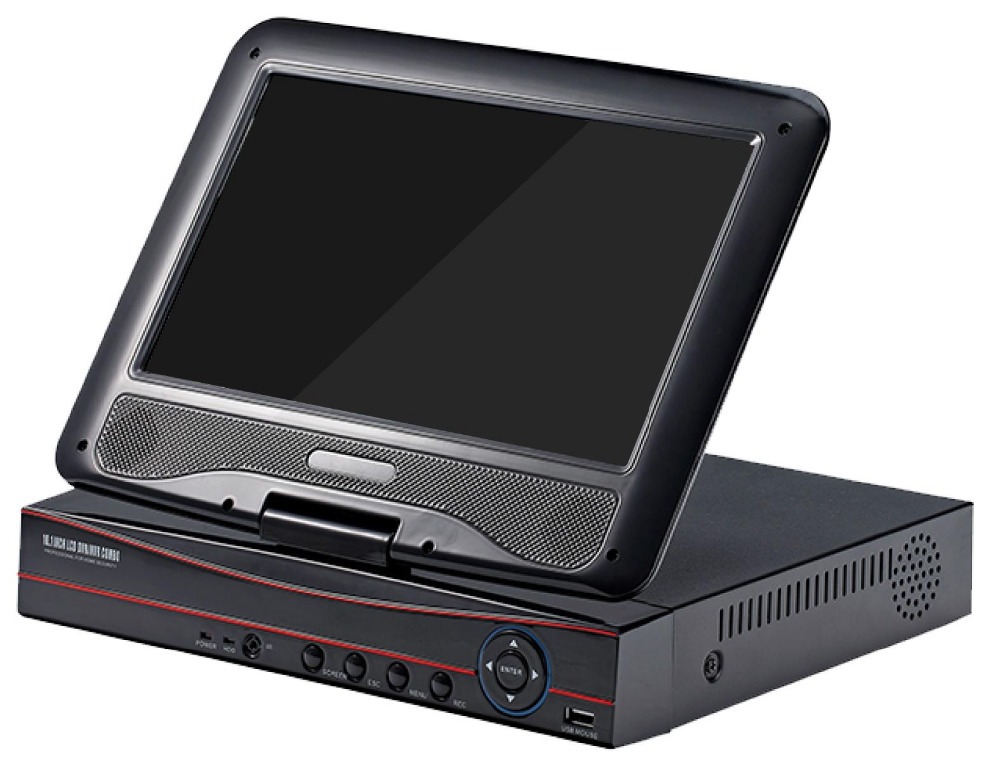

4-CH 1080P NVR with 10'' Monitor
Model ID:VN-N304A
SystemMain processorHi3520D
Operating system LINUX
Video spec.Video compression formatH.264
Display Image Resolution720P@30fps;960P@30fps;1080P@30fps
Playback Image Resolution720P@30fps;960P@30fps;1080P@30fps
Motion Detection192(16×12) motion detection areas per channel
and multi-level sensitivity(1-6 levels adjustable)
Privacy MaskingDepends on ipc
Recording ModeRecording ModeManual Recording, Motion Detection Recording,
Time Recording, Alarm Recording
Recording storageHDD,Network
Frame rate30 fps NTSC;25fps PAL
Recording Playback960P x 4CH/1080P x 2CH
Backup ModeSupport HDD,USB Flash Disk store & backup
VideoNetwork Video Input4ch
Video output1ch VGA , 1ch HDMI ,1ch BNC
AudioAudio InputN/A
Audio OutputN/A
AlarmAlarm InputN/A
Alarm OutputN/A
OtherNetwork1x10/100Mbps,RJ45 port
RS485Standard 485 port,support half-duplex, green terminal port
USB2 USB 2.0 ports
HDD1 SATA port (Max 4TB)
PowerDC +12V /2A
Power consumption16W-18W(not include HDD and PoE)
Operation temperature0℃-+55℃
Operation humidity10%-90%
Demension252 x 213 x 42mm(0.8u hight)
Weight3.5 KG



Features:

 1/4" Progressive Scan CMOS 1.0/1.3/2.0 Megapixel
 3.6mm lens, IR LED: 5X36pcs, IR Range: 20M
 RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/P2P
 Motion detection, IR-CUT, NR, Mirror, Support 18 kinds of languages
 Video Input: 4CH x 720P/ 4CH x 960P/4CH x 1080P
 Video Output: HDMI 1CH out; VGA 1CH out
 live view, record, search file, backup, RS485
 Playback: 4CH 720P/960P/ 1080P
 Digital zoom (both in live view and playback)
 Resolution: 960P(1280×960)30fps/720P(1280×720)30fps
 Onvif 2.0, Dual stream, 2 USB 2.0 port, 3G
 P2P, Support iPhone, Windows Mobile, BlackBerry, Android
 1 SATA interface  Up to 4TB capacity, Support 28 kinds of languages
 Compatible with AXIS,  SONY, Panasonic,SANYO, BOSCH, SAMSUNG, Honeywell,VIVOTEK,Ambarella,  HIKVISION,DAHUA



 Pictures of  Vandsec 4CH 720P/1080P Wifi Security Camera Kit:



Packaging & Shipping

Packaging & Shipping of Vandsec Wifi Security Camera Kit:







Our Services



Ⅰ. ODM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double

  check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and

  double check with you before goods dispatch.



  3. Logo Printing:

  Your order over 50PCS total we can free print your logo, or will add $30 for

  silk print fee.

  Please send us .JPG format Logo within 2 colours, we will help you print on

  products and box, double check with you before goods dispatch.



Ⅱ. OEM Service



  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label

  and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print

 manual and double check with you before goods dispatch.



  3. Logo Printing:

  Please send us .JPG format Logo within 3 colours, we will help you print

  on products and box, double check with you before goods dispatch.



  4. Box:

  Please send us your designed box based on our box demision and graph

  paper, we will send our box demision and graph paper first.



Company Information





Company Information



As a high-tech enterprise, we are engaged in the R&D, manufacturing, and exporting of surveillance products. We focus on high-end CCTV Cameras, IP Cameras, DVRs, NVR, HD-SDI, HD-CVI Products and CCTV relatives, Vandsec always dedicated to the World’s safety market to create a better life

Established in Aug 2008, as a specialized manufacturer, Vandsec developed more than 200 different models of CCTV Products. With many years’ experience in exporting CCTV products, Vandsec products have been accepted by customers in over 150 countries, especially in Europe , USA and South America.



FAQ

1.DVR Card problem;
(1). Check the BNC connector of the DVR channels, if the image also have the image interference., it must be the DVR Card problem.
(2). DVR ground wire do not connect it well. Check the gournd wire if not , add it and restart the DVR without outage.

2.DVR single channel or few channel has image interference, flicking and a line in the middle of the image.
(1). Check the Security camera is working well;
(2). Check th BNC is good one;
(3). Check the video line.

3. PTZ Camera or High speed dome can not control it;
(1). Check DVR RS-485 port is working well;
(2). Check the Voltage of RS-485 beside the Zoom modules and PTZ;
(3). Separate testing. Check each channel conncect to DVR, and find the one which can not control it;
(4). Check the decoder or hardware of ptz camera;
(5). Address, baud rate, and protocol.

4.Box camera, all in one camera no video image;
AC220 Voltage is regular;
Power supply output and input;
RS-485 or BNC Connector is right and well.

5.Black screen for monitor;
AC 220V voltage is regular.
Check the monitor on your computers.

6.DVR keyboard can not be controlled;
(1). DVR DC 12V is ok;
(2). Electrical current is OK.

7.DVR has Alarm noise.
(1). HDD has problems or fault;
(2). Video loss;
(3). Alarm signal has been triggered.
