Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Vandsec
  • Model Number: VK-N524W
  • Type: IP Camera
  • Style: Bullet Camera
  • Sensor: CMOS
  • Technology: NetWork
  • Special Features: Waterproof / Weatherproof
  • Video Input: 4CH x 960P
  • Video Output: HDMI 1CH out; VGA 1CH out
  • Playback: 4CH 720P
  • Resolution: 30fps
  • Megapixel: 1.3 Megapixel
  • lens: 3.6mm lens
  • IR LED:: 36pcs
  • IR Range: 25M
  • interface: 1 SATA interface Up to 4TB capacity
  • languages: Support 28 kinds of languages

Packaging & Delivery

Packaging Details New Products! PLC CCTV camera system Packaging: 4 x Cameras, 1 x NVR, 1x USB Mouse, 1x IR Controller, 5x Power Adapter

  Vandsec New Products PLC - Power Line Communication 4CH NVR Kit Home Security CCTV camera system

Product Description

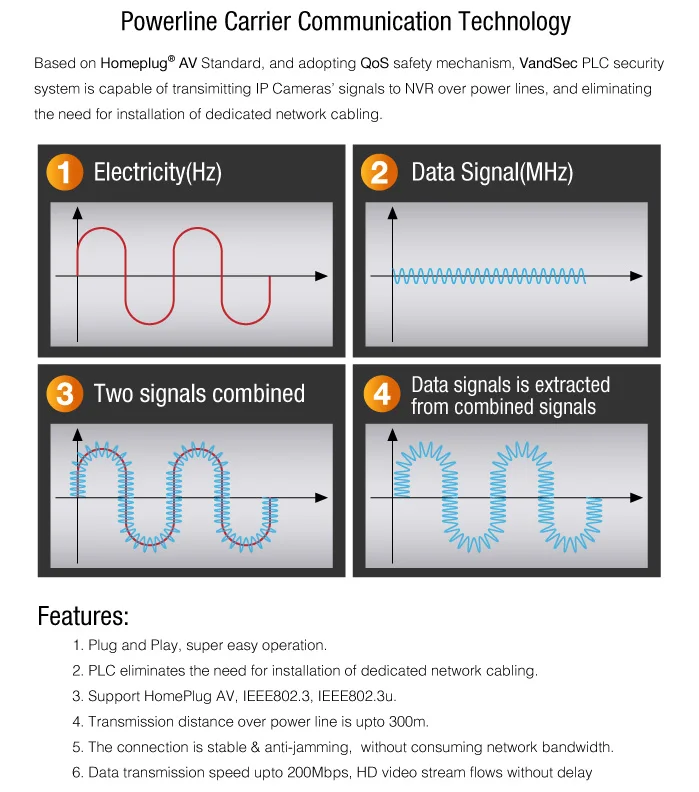

  • What is PLC(Power-line communication)

Power-line communication (PLC) carries data on a conductor that is also used simultaneously for AC electric power

transmission or electric power distribution to consumers. It is also known as power-line carrier, power-line digital

subscriber line (PDSL), mains communication, power-line telecommunications, or power-line networking (PLN).



  • Application

VandSec PLC security kits apply PLC technology to build the LAN network for IP Cameras and NVRs.



  • Advanteges



  1.  1. PLC signal is stable and relible. Siganl is much better than Wi-Fi. No consumtion of bandwidth, no interference.

  2.  2. Transmit distance is over 300meter over powerlines. No need dedicated cabling.

  3.  3. Plug and Play, super easy operation. We changed the professional CCTV system to easy handling consumer electronics.

  4.  4. PLC signal speed is over 200Mbps, 4-ch 1080p video streams flow without delay.
  • Specification



StandardsHomePlug®AV, IEEE 802.3, IEEE 802.3u
ProtocolTCP/IP, IGMP, CSMA/CA,QoS
Frequency2-28MHz
Transmit Speed 200Mbps
Ethernet Port10/100Mbps 4pin
InterfaceAC port, Function Pin Interface, Ethernet Interface, DC port
Transit Distance300M(Under One KWH Electric Meter)
Date Security128-bit AES Coding
Power DC 12V 200mA




VK-N524W10-PHD IP Camera with IR cut
1/4"  OV 9712+HI3518E 1.0 Mega Pixels CMOS
VK-N524W13-PHD IP Camera with IR cut
1/3" Aptina 0130+HI3518E Low Illumination 1.3 Mega Pixels CMOS
VK-N524W20-PHD IP Camera with IR cut
1/3" OV2710+HI3516C Low Illumination 2.0 Mega Pixels CMOS



Camera with DC Out, IP Singinal Communicate by Power Line



Camera 1/4" Progressive Scan CMOS 1.0/1.3/2.0 Megapixel
 3.6mm lens, IR LED: F5X36pcs, IR Range: 25M
 RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/P2P
 Motion detection, IR-CUT, NR, Mirror
 Camera: VN-GB10/VN-GB13/VN-GB20 x 4PCS
NVR Video Input: 4CH x 720P/ 4CH x 960P/ 1080P
 Video Output: HDMI 1CH out; VGA 1CH out
 Audio 1CH Input, 1CH output
 live view, record, search file, backup
 Playback: 4CH 720P/960P/1080P
 Digital zoom (both in live view and playback)
 Resolution: 1080P/960P/720P
 Onvif 2.0, Dual stream, 2 USB 2.0 port, 3G
 P2P (goolink), Support iPhone, Android
 1 SATA interface  Up to 4TB capacity,Multi-languages
List 4 x Cameras, 1 x NVR, 1x USB Mouse, 4x Camera special Power Adapters, 1 x NVR Power cable



Packaging & Shipping

We customize the package of New Products! PLC CCTV camera system for our clients:



 New Products! PLC CCTV camera system shipping condition:



Express:


1. DHL is our first choice to dispatch goods. We have long relationship with Hong Kong DHL. Good price, good service. You will receive goods usually 4-5 days.


2. TNT is very economy by some European countries, usually TNT Economy is the cheapest way, you will receive goods in one week.


3. UPS is good choice for some of Asia & Europ countries. You will receive the goods around 4-5 days.


4. Fedex is a better way for some island countries. Fedex Economy also accepted. You will receive the goods around 4-7 days.


5. EMS usually for some countries hard to do customs clearance, such as Ukraine or Russia, you do not need pay tax. But, EMS only for small package.


Forwarder:


1. We have our own forwarder by air and by Sea for your convenience, we will quotation a competitive price to you.


2. If you have your own forwarder, we are happy to assistant your forwarder shipping goods.

Our Services

 Service of  New Products PLC CCTV camera system



Ⅰ. ODM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Your order over 50PCS total we can free print your logo, or will add $20 for silk print fee.

  Please send us .JPG format Logo within 2 colours, we will help you print on products and box, double check with you before goods dispatch.



Ⅱ. OEM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Please send us .JPG format Logo within 3 colours, we will help you print on products and box, double check with you before goods dispatch.



  4. Box:

  Please send us your designed box based on our box demision and graph paper, we will send our box demision and graph paper first.



Company Information



As a high-tech enterprise, we are engaged in the R&D, manufacturing, and exporting of surveillance products. We focus on high-end CCTV Cameras, IP Cameras, DVRs, NVR, HD-SDI, HD-CVI Products and CCTV relatives, Vandsec always dedicated to the World’s safety market to create a better life

Established in Aug 2008, as a specialized manufacturer, Vandsec developed more than 200 different models of CCTV Products. With many years’ experience in exporting CCTV products, Vandsec products have been accepted by customers in over 150 countries, especially in Europe , USA and South America.





Trade shows







FAQ

 FAQ of  New Products! PLC CCTV camera system



1.DVR Card problem;
(1). Check the BNC connector of the DVR channels, if the image also have the image interference., it must be the DVR Card problem.
(2). DVR ground wire do not connect it well. Check the gournd wire if not , add it and restart the DVR without outage.

2.DVR single channel or few channel has image interference, flicking and a line in the middle of the image.
(1). Check the Security camera is working well;
(2). Check th BNC is good one;
(3). Check the video line.

3. PTZ Camera or High speed dome can not control it;
(1). Check DVR RS-485 port is working well;
(2). Check the Voltage of RS-485 beside the Zoom modules and PTZ;
(3). Separate testing. Check each channel conncect to DVR, and find the one which can not control it;
(4). Check the decoder or hardware of ptz camera;
(5). Address, baud rate, and protocol.

4.Box camera, all in one camera no video image;
AC220 Voltage is regular;
Power supply output and input;
RS-485 or BNC Connector is right and well.

5.Black screen for monitor;
AC 220V voltage is regular.
Check the monitor on your computers.

6.DVR keyboard can not be controlled;
(1). DVR DC 12V is ok;
(2). Electrical current is OK.

7.DVR has Alarm noise.
(1). HDD has problems or fault;
(2). Video loss;
(3). Alarm signal has been triggered.



Contact

Feel free to contact me at any time if you have any questions:





Skype: sue.vandsec     whatsapp:+86 13827415058
