Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Vandsec
  • Model Number: VW-BB + surveillance camera
  • Type: Analog Camera, Surveillance camera
  • Style: Bullet Camera
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: Waterproof / Weatherproof
  • IR LED: c/ 5X24pcs
  • IR Range: 20M
  • Lens: Board Lens 3.6mm
  • Water Resistance: IP66
  • TV lines: CMOS700, CMOS800, SONY650, SONY700, SONY720 OR SONY1000
  • CCD: SONY, SHARP or CMOS
  • Size: 175*69*55mm
  • Color: White, Black
  • Weight: 580g

Packaging & Delivery

Packaging Details Surveillance camera Package: 1 pcs Bullet camera, 1 Screw kit, 1 pc wrench and 1 user manual
Delivery Time 3-5 working days depends on the CCTV camera Qty

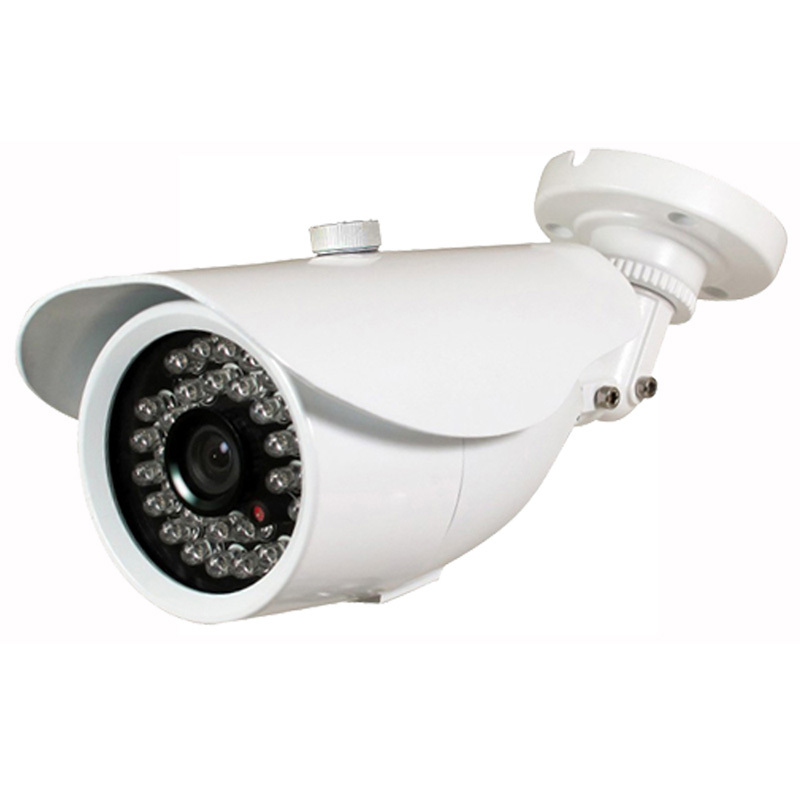

3-Axis Cable Built-in Bracket waterproof IP66 IR Bullet surveillance Camera

Product Description

 Specification of VW-BB Series Waterproof IR Bullet surveillance Camera:

Model ID:VW-BBC70VW-BBC80VW-BBH60VW-BBS65VW-BBS70VW-BBS70AVW-BBS70VVW-BBS720
Description:Waterproof IR Bullet Camera;¢5×24pcs IR LED, IR Range: 20M
TV System:NTSC / PAL
Image Sensor:1/4" Color1/4" Color1/3" Color1/3" Color1/3" Color1/3" Color1/3" Color1/3" Color
CMOSCMOSSHARP CCDSONY CCDSONY CCDSONY CCDSONY CCDSONY CCD
Horizontal resolution: 700 TVL800 TVL(960H) 600 TVL 650 TVL700 TVL720 TVL720 TVL1000 TVL(720P)
Effective Pixels:728(H)×488(V)976(H)×496(V)P:752(H)×582(V)P:976(H)x582(V)1305(H)×1049(V)
N:768(H)×494(V)N:976(H)×494(V)
Sensitivity:0.01Lux/F2.00.001Lux/F2.0
Lens:Board Lens 3.6mm
Sync,System:Internal Synchronization
Scanning System: 2:1 Interface
Shutter Speed:1/60~1/100,000sec (N), 1/50~1/100,000sec (P)
S/N Ratio: 50dB (AGC OFF) 52dB (AGC OFF)
Video Out:Composite Signal (1.0Vp-p, 75Ω)
White Balance:Auto
AGC:Auto
OSD:NOYES
WDR:NOYESYESYESR-WDRYES
NR:NODNR3D
Sense-up:NOYESNO
Defog:NOYESNO
Power Source:DC12V(9V ~ 15V),  800MA
Operating Enviroment:-20~60 / 10% ~ 95%RH
Working Humidity:90%
Size(mm):175mm x 69mm × 55mm
Weight(kg):0.58 kg












Online Demo







Packaging & Shipping

 We customize the package of the surveillance Camera for our clients:





 Surveillance Camera  shipping condition:



Express:


1. DHL is our first choice to dispatch goods. We have long relationship

with Hong Kong DHL. Good price, good service. You will receive goods usually 4-5 days.


2. TNT is very economy by some European countries,

usually TNT Economy is the cheapest way, you will receive goods in one week.


3. UPS is good choice for some of Asia & Europ countries.

You will receive the goods around 4-5 days.


4. Fedex is a better way for some island countries.

Fedex Economy also accepted. You will receive the goods around 4-7 days.


5. EMS usually for some countries hard to do customs clearance,

such as Ukraine or Russia, you do not need pay tax. But, EMS only for small package.


Forwarder:


1. We have our own forwarder by air and by Sea for your convenience,

we will quotation a competitive price to you.


2. If you have your own forwarder, we are happy to

assistant your forwarder shipping goods.

Our Services

Ⅰ. ODM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and

double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment,

we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Your order over 50PCS total we can free print your logo, or will add $20 for silk print fee.

  Please send us .JPG format Logo within 2 colours,

we will help you print on products and box, double check with you before goods dispatch.



Ⅱ. OEM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID,

we will print label and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment,

we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Please send us .JPG format Logo within 3 colours, we will help you print

on products and box, double check with you before goods dispatch.



  4. Box:

  Please send us your designed box based on our box demision and

graph paper, we will send our box demision and graph paper first.

Company Information





FAQ



1.DVR Card problem;
(1). Check the BNC connector of the DVR channels, if the image also have the image interference., it must be the DVR Card problem.
(2). DVR ground wire do not connect it well. Check the gournd wire if not , add it and restart the DVR without outage.

2.DVR single channel or few channel has image interference, flicking and a line in the middle of the image.
(1). Check the Security camera is working well;
(2). Check th BNC is good one;
(3). Check the video line.

3. PTZ Camera or High speed dome can not control it;
(1). Check DVR RS-485 port is working well;
(2). Check the Voltage of RS-485 beside the Zoom modules and PTZ;
(3). Separate testing. Check each channel conncect to DVR, and find the one which can not control it;
(4). Check the decoder or hardware of ptz camera;
(5). Address, baud rate, and protocol.

4.Box camera, all in one camera no video image;
AC220 Voltage is regular;
Power supply output and input;
RS-485 or BNC Connector is right and well.

5.Black screen for monitor;
AC 220V voltage is regular.
Check the monitor on your computers.

6.DVR keyboard can not be controlled;
(1). DVR DC 12V is ok;
(2). Electrical current is OK.

7.DVR has Alarm noise.
(1). HDD has problems or fault;
(2). Video loss;
(3). Alarm signal has been triggered.
