Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: VANDSEC
  • Model Number: VK-N504X + 4 ch ip camera system
  • Type: IP Camera
  • Style: Dome and Bullet
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: Waterproof / Weatherproof
  • Lens: 3.6mm lens
  • IR LED: c/ 5x36pcs
  • IR Range: 20M
  • Motion detection: yes
  • Onvif: yes
  • Compatible: SONY, Panasonic,SANYO, BOSCH, SAMSUNG, Honeywell,VIVOTEK,Ambarella,ETC
  • Waterproof: IP66
  • P2P: Support iPhone, Windows Mobile, BlackBerry, Android
  • Video Input: 4CH x 720P/ 4CH x 960P/4CH x 1080P
  • Video Output: HDMI 1CH out; VGA 1CH out

Packaging & Delivery

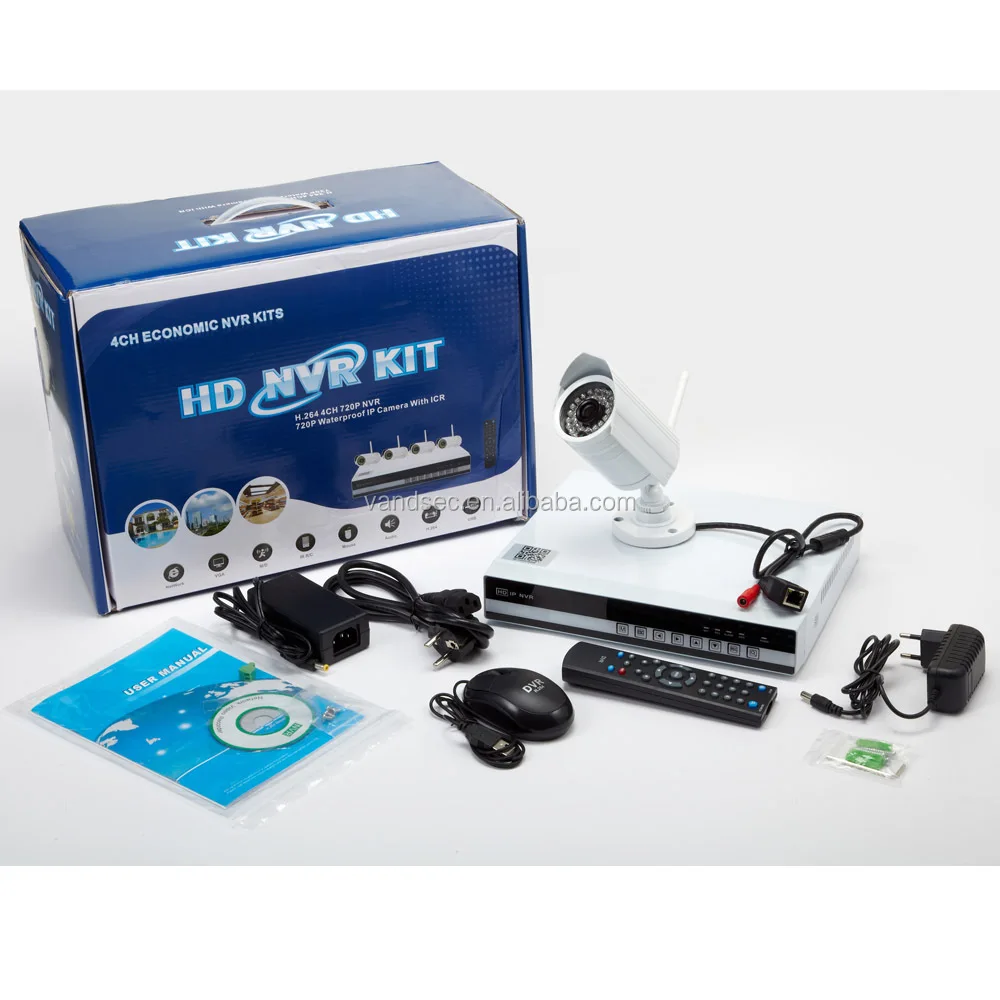

Packaging Details Package for wifi camera: 4 x Cameras, 1 x NVR, 1x USB Mouse, 1x IR Controller, 5x Power Adapter
Delivery Time We ship wifi camera with in 3-5 working days

Vandsec new arrival wireless CCTV CAMERA 4 ch ip camera system



Product Description



 Specification of wifi camera kits

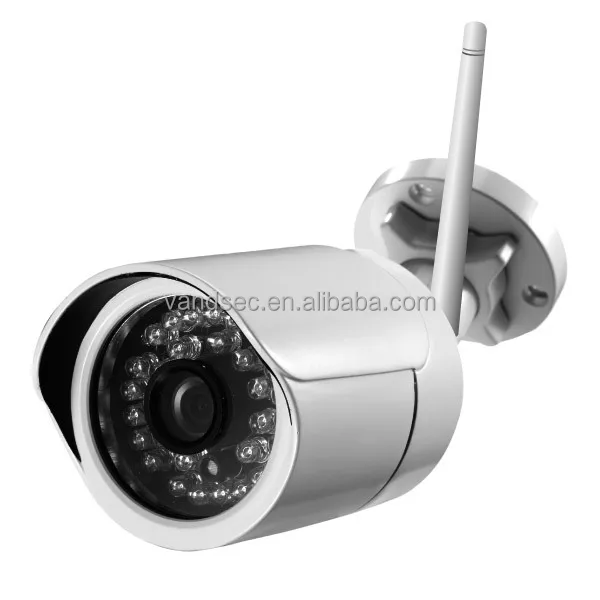

Camera:


ModelVN-GB10VN-GB13VN-GB20VN-IGB10VN-IGB13VN-IGB20
Image Sensor1/4" 1.0 Megapixel CMOS1/3" 1.3 Megapixel CMOS1/2.5"  2 Megapixel CMOS1/4" 1.0 Megapixel CMOS1/3" 1.3 Megapixel CMOS1/2.5"  2 Megapixel CMOS
Chipset SolutionOV9712 + Hi3518CAR0130 + Hi3518CHI 3516C  + IMX222OV9712 + Hi3518CAR0130 + Hi3518CHI 3516C  + IMX222
Resolution1280×720 (720P)1280×960 (960P) 1920×1080(1080P)1280×720 (720P)1280×960 (960P) 1920×1080(1080P)
Minimum Illumination3300mV/Lux-sec 5500mV/Lux-sec 6200mV/Lux-sec 3300mV/Lux-sec 5500mV/Lux-sec 6200mV/Lux-sec
S/N Ratio39db44db51db39db44db51db
Frame Rate1.0 Megapixel @ 25FPS1.3 Megapixel @ 25FPS2 Megapixel @ 25FPS1.0 Megapixel @ 25FPS1.3 Megapixel @ 25FPS2 Megapixel @ 25FPS
Focus Modefixed
Day/NightIR cut filter with auto switch, IR sensor.
Video Outputanalog video out(optional), CVBS supported, PAL/NTSC (configurable)
Network1 RJ45 Ethernet interface, 10/100M adaptation
DelayWithin 0.3S
Video CompressionH.264 compression ,dual stream ( 0.1M-6Mpbs adjustable)
ProtocolProtocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
OnvifSupport Onvif 2.2
User PermissionMulti-user Classification Management
Power/CurrentDC 12V/1A
Consumption3.0W
Lens 3.6 mm(2M Pixels)
IR StatusIR LED: ¢5X36pcs, IR Range: 20MIR LED: ¢5 X 15pcs, IR Range: 20M
Dimension (mm)92mm x 62mm x 58mm 75mm ×55mm
Weight (g)600g 950g
 Temperature-10℃~ +60℃
Humidity0%-90%RH,Without Condensation

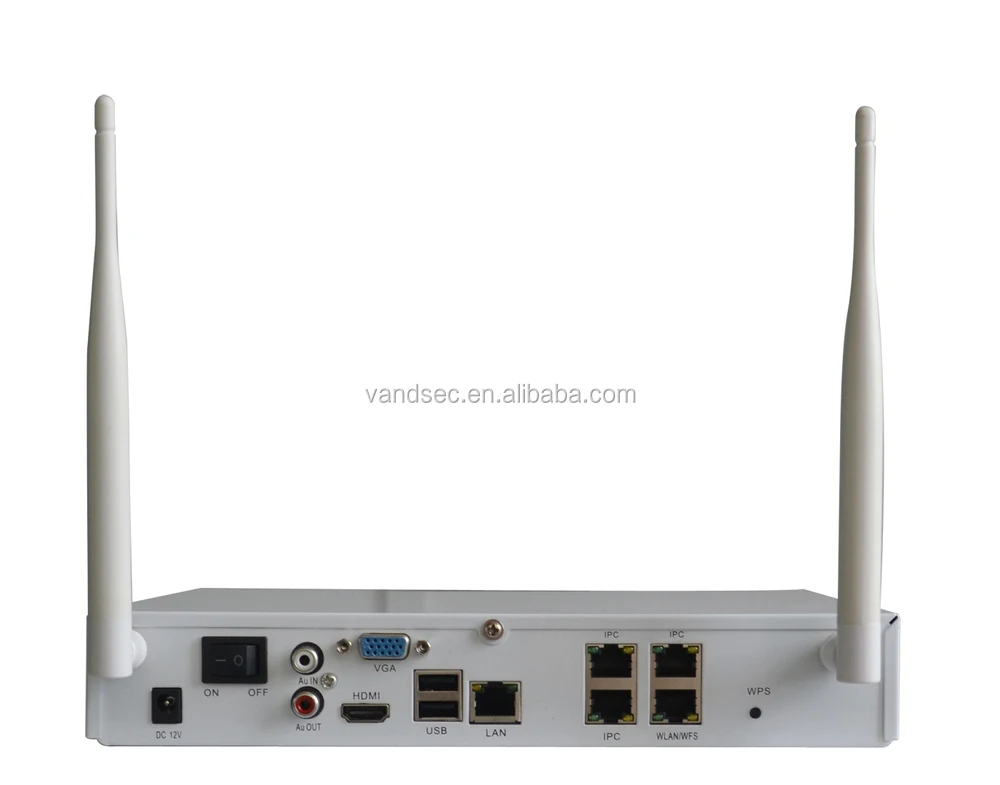

NVR:
Model ID:VN-N504A
SystemMain processorHigh performance embedded microprocessor
Operating systemEmbedded LINUX OS
System resourceMulti-channel real-time recording,  playback,  multi-channel multi-user network operation,  USB back up.
VideoVideo standard30 fps NTSC;25fps PAL
Image encodeH.264(High Profile)
Monitor qualityVGA, HDMI
Playback quality720P/ 960P/1080P
Encode capability4-ch 720P/ 960P/1080P real-time
Decode capability1*720P/ 960P/1080P real-time
Motion detectionEach channel can set 192(16*12)detection area
AudioAudio compressionN/A
Bidirectional talkN/A
Record and playbackRecord modemanual > alarm > motion detection> timing
Local playback1CH  playback
Video searchtime ; date ; event ; channel search
Storage and back upSpace occupationVideo:32G/day/channel
Video storageLocal HDD  ; Network
Back up modeNetwork backup; USB backup; SATA imprint
InterfaceVideo input4-CH
Video output1CH CVBS/BNC(1.0Vp-p, 75Ω), 1ch VGA, 1ch HDMI
Loop outputN/A
Audio inputN/A
Audio outputN/A
Alarm inputN/A
Alarm outputN/A
Network portRJ45 10M/100M self-adaptive Ethernet port
PTZ controlN/A
USB port2*USB2.0
HDD port1 SATA ports(each max to 4TB)
Wireless portN/A
OtherPowerDC  12V /4A
Consumption<15W(not including HDD)
Temperature0℃-+55℃
 Humidity10%-90%
Atmosphere pressure 86kpa-106kpa
Dimension252 x 213 x 42mm(0.8u hight)
Weight1.5--1.8KG(not include HDD)




















Online Demo

Online demo is free:





Trade shows

Welcome to Join Us at ISC West and IFSEC 2015!

Below you can find our booth number, jot it down!





Packaging & Shipping



Express:


1. DHL is our first choice to dispatch goods. We have long relationship with Hong Kong DHL. Good price, good service. You will receive goods usually 4-5 days.


2. TNT is very economy by some European countries, usually TNT Economy is the cheapest way, you will receive goods in one week.


3. UPS is good choice for some of Asia & Europ countries. You will receive the goods around 4-5 days.


4. Fedex is a better way for some island countries. Fedex Economy also accepted. You will receive the goods around 4-7 days.


5. EMS usually for some countries hard to do customs clearance, such as Ukraine or Russia, you do not need pay tax. But, EMS only for small package.


Forwarder:


1. We have our own forwarder by air and by Sea for your convenience, we will quotation a competitive price to you.


2. If you have your own forwarder, we are happy to assistant your forwarder shipping goods.



Our Services



Ⅰ. ODM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Your order over 50PCS total we can free print your logo, or will add $20 for silk print fee.

  Please send us .JPG format Logo within 2 colours, we will help you print on products and box, double check with you before goods dispatch.



Ⅱ. OEM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Please send us .JPG format Logo within 3 colours, we will help you print on products and box, double check with you before goods dispatch.



  4. Box:

  Please send us your designed box based on our box demision and graph paper, we will send our box demision and graph paper first.





Company Information









FAQ

 Q: Does this wifi camera kit offer HD real time?

A:  Yes,  720P/ 960P HD Real-time



Q:Does this  nvr wifi camera kit offer HD real time support Andoid and iOS system?

A: Yes, it support both Android and iOS system.



Q: Can we print our own logo on the product.

A: Yes, we can help our customer print there own logo on the product.



Q: What is your warranty policy?

A: We offer two years warranty



Q: Can I order camera or NVR seperately?

A: Yes, you can order them sperately, just contact us for the details.

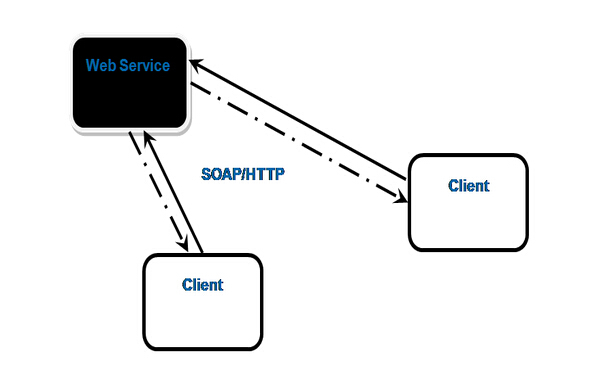

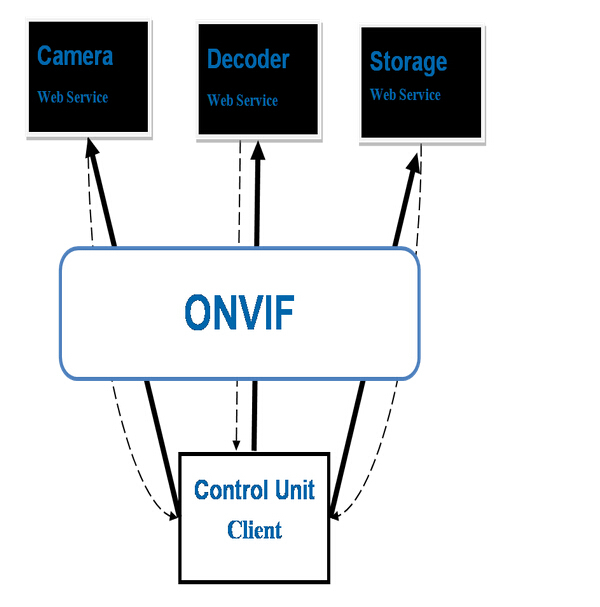

Q: What is onvif?
