Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Vandsec
  • Model Number: VW-ABV series + dvr camera
  • Type: Analog Camera, Waterproof IR Bullet dvr Camera, IP67
  • Style: Bullet Camera
  • Sensor: CMOS
  • Technology: Infrared
  • Special Features: Metal
  • IR LED: 6 pcs IR Leds
  • IR Range: 60M
  • Lens: 2.8-12mm Manual Zoom Lens(2M Pixels)
  • Video Output: VGA / HDMI
  • Supports: Onvif, Support Gmail/GOOGLE/QQ/EMAIL
  • Working Temperature: -10℃~ +60℃
  • Size: 228mm x 97mm x 82mm
  • Weight: 1700g
  • Colour: White

Packaging & Delivery

Packaging Details Package: 1 pcs dvr camera
1 Screw kit,
1 pc wrench
1 user manual
Delivery Time 3~5 working days

Vandsec China top ten selling products! IP67 waterproof CCTV surveillance dvr camera





Product Description

Specification of dvr Camera:

Waterproof IR Bullet IP Camera, IP67
IR LED: 6pcs, IR Range: 60M
Lens:  2.8-12mm Manual Zoom Lens(2M Pixels)
Video Output:  VGA / HDMI
Supports Onvif, Support Gmail/GOOGLE/QQ/EMAIL
PNP(Plug and Play), support smart phone & tablets
OSD, Motion Detection, Remote View and Control, IR-Cut
Working Temperature: -10℃~ +60℃
Size:  228mm x 97mm x 82mm
Weight: 1700g



Chipset:

1.0MP

1/4" OV 1.0 Mega Pixels CMOS,
Dual Stream: 720P/D1,
Image Resolution: Max: 1280*720
Frame Rate: 30/25fps(1280*720)



1.3MP

1/3" Aptina Low Illumination 1.3 Mega Pixels CMOS,
Dual Stream: 960P/720P,
Image Resolution: Max: 1280*960
Frame Rate: 30/25fps(1280*960)



2.0MP

1/2.5" Sony IMX 222 2 Mega Pixels CMOS,
Dual Stream: 1080P/720P/D1,
Image Resolution: Max: 1920*1080
Frame Rate: 30/25fps(1920*1080)





ModelVW-ABV10VW-ABV13VW-ABV20
Image Sensor1/4" APTINA0141 1.0 Mega 720P/960H CMOS Sensor 1/3" IMX225+NEXTCHIP2431H 1.4 Mega 960P/960H CMOS Sensor1/3" IMX322+NVP2441H 2.4 Mega 1080P/960H CMOS Sensor
Resolution1280×7201280×9601920×1080
Minimum Illumination3300mV/Lux-sec 5500mV/Lux-sec 1.76V/Lux-sec
S/N Ratio39db44db38.5db
Frame Rate1.0 Megapixel @ 25FPS1.3 Megapixel @ 25FPS 2.0 Megapixel @ 25FPS
Focus ModeFixed
Day/NightIR cut filter with auto switch, IR sensor.
Video Outputanalog video out(optional), CVBS supported, PAL/NTSC (configurable)
  Water ResistanceIP67
DelayWithin The LAN0.3S
Video CompressionH.264 compression ,dual stream ( 0.1M-6Mpbs adjustable)
ProtocolProtocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
OnvifSupport Onvif 2.0
User PermissionMulti-user Classification Management
Power/CurrentDC 12V/2A
Consumption3.0W
Lens3.6mm Board Lens
IR StatusIR LED: 6PCS  IR range: 60M
Dimension (mm)228mm x 97mm x 82mm
Weight (g)1700g
 Temperature-10℃~+60℃
Humidity0%-90%

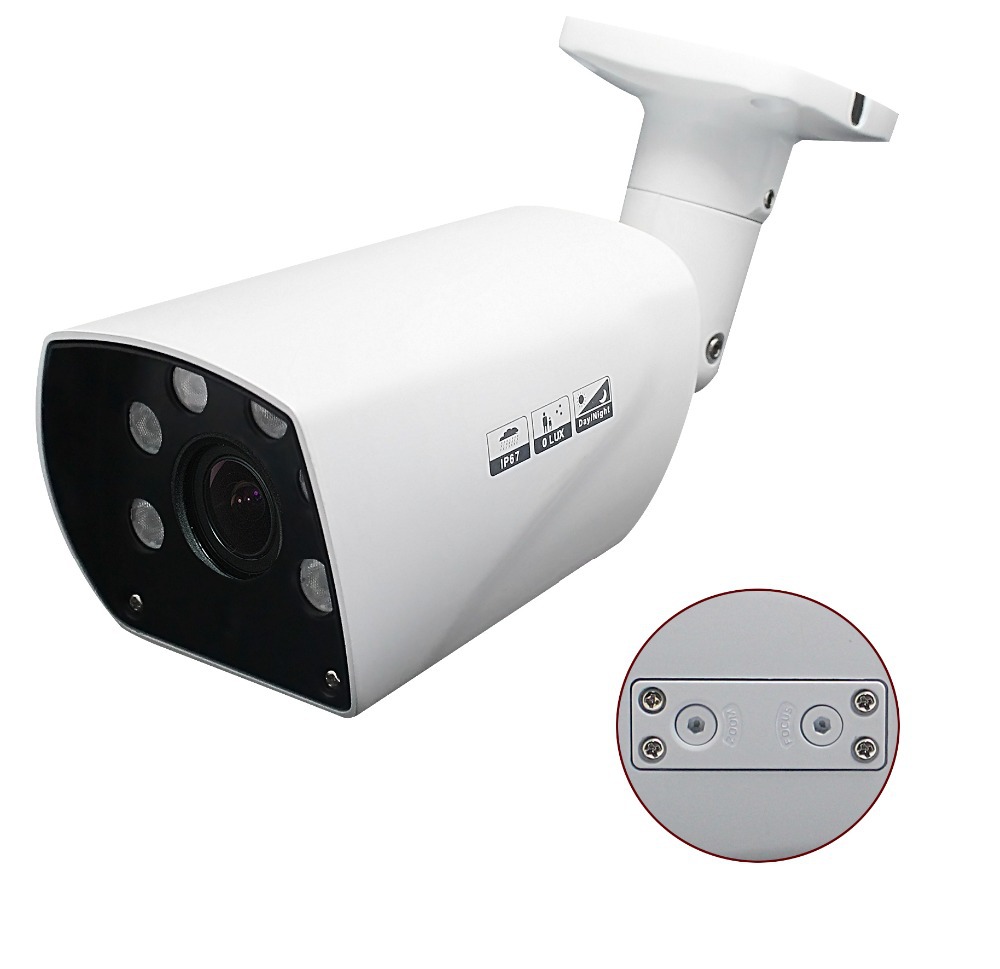

Picture of Dvr Camera











Packaging & Shipping

Shipping of dvr Camera:

Packing of DVR Camera:





Express:


1. DHL is our first choice to dispatch goods. We have long relationship with Hong Kong DHL. Good price, good service.

You will receive goods usually 4-5 days.


2. TNT is very economy by some European countries, usually TNT Economy is the cheapest way, you will receive goods

in one week.


3. UPS is good choice for some of Asia & Europ countries. You will receive the goods around 4-5 days.


4. Fedex is a better way for some island countries. Fedex Economy also accepted. You will receive the goods

 around 4-7 days.


5. EMS usually for some countries hard to do customs clearance, such as Ukraine or Russia, you do not need pay tax.

But, EMS only for small package.


Forwarder:


1. We have our own forwarder by air and by Sea for your convenience, we will quotation a competitive price to you.


2. If you have your own forwarder, we are happy to assistant your forwarder shipping goods.



Our Services



Ⅰ. ODM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Your order over 50PCS total we can free print your logo, or will add $20 for silk print fee.

  Please send us .JPG format Logo within 2 colours, we will help you print on products and box, double check with you before goods dispatch.



Ⅱ. OEM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Please send us .JPG format Logo within 3 colours, we will help you print on products and box, double check with you before goods dispatch.



  4. Box:

  Please send us your designed box based on our box demision and graph paper, we will send our box demision and graph paper first.





Company Information



As a high-tech enterprise, we are engaged in the R&D, manufacturing, and exporting of security cctv camera and related accessories. We focus on high-end CCTV Cameras, IP Cameras, DVRs, NVR, HD-SDI, HD-CVI Products and CCTV relatives, Vandsec always dedicated to the World’s safety market to create a better life

Established in Aug 2008, as a specialized manufacturer, Vandsec developed more than 200 different models of CCTV security camera. With many years’ experience in exporting CCTV security camera, Vandsec products have been accepted by customers in over 150 countries, especially in Europe , USA and South America.



Trade Show





FAQ



1.DVR Card problem;
(1). Check the BNC connector of the DVR channels, if the image also have the image interference., it must be the DVR Card problem.
(2). DVR ground wire do not connect it well. Check the gournd wire if not , add it and restart the DVR without outage.

2.DVR single channel or few channel has image interference, flicking and a line in the middle of the image.
(1). Check the Security camera is working well;
(2). Check th BNC is good one;
(3). Check the video line.

3. PTZ Camera or High speed dome can not control it;
(1). Check DVR RS-485 port is working well;
(2). Check the Voltage of RS-485 beside the Zoom modules and PTZ;
(3). Separate testing. Check each channel conncect to DVR, and find the one which can not control it;
(4). Check the decoder or hardware of ptz camera;
(5). Address, baud rate, and protocol.

4.Box camera, all in one camera no video image;
AC220 Voltage is regular;
Power supply output and input;
RS-485 or BNC Connector is right and well.

5.Black screen for monitor;
AC 220V voltage is regular.
Check the monitor on your computers.

6.DVR keyboard can not be controlled;
(1). DVR DC 12V is ok;
(2). Electrical current is OK.

7.DVR has Alarm noise.
(1). HDD has problems or fault;
(2). Video loss;
(3). Alarm signal has been triggered.
