Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: Vandsec
  • Model Number: VK-A3204HDX10 security camera

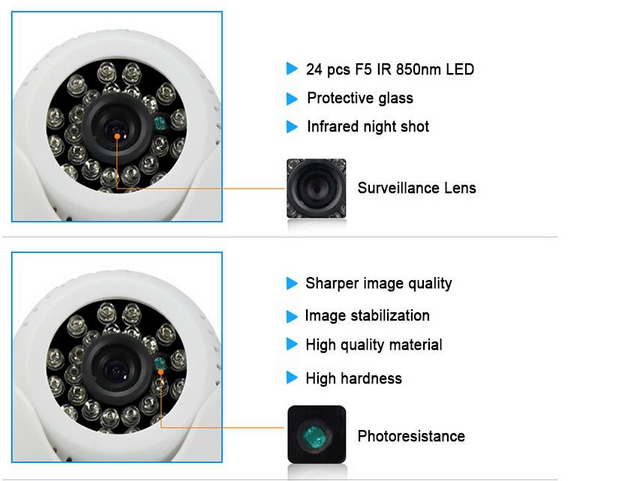

  • IR LED: 5X24pcs oem ip camera h.264 diy dvr kit
  • IR Range: 20M h.264 diy dvr kit
  • Motion Detection: Yes h.264 diy dvr kit
  • DVR Solution: 720p,960p,1080p
  • Certificate: CE FCC RoHS
  • Product name: 4 Channel Mobile DVR(HDD Storage)
  • Video input: 4CH BNC
  • Type: AHD DVR
  • Playback: Max 4CH
  • Compression: H.264 4channel

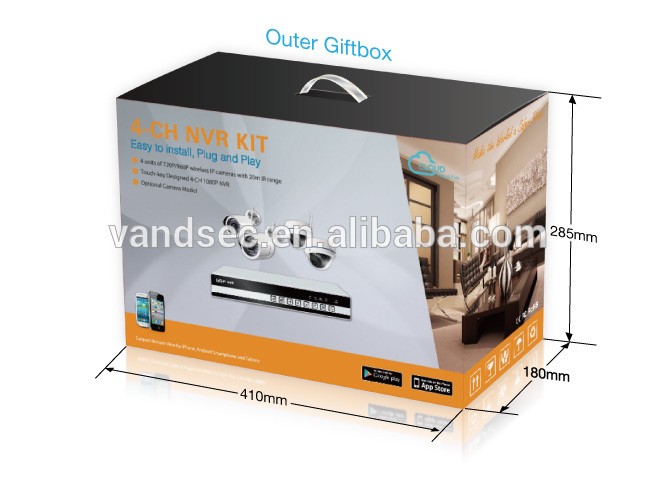

Packaging & Delivery

Packaging Details h.264 diy dvr kit

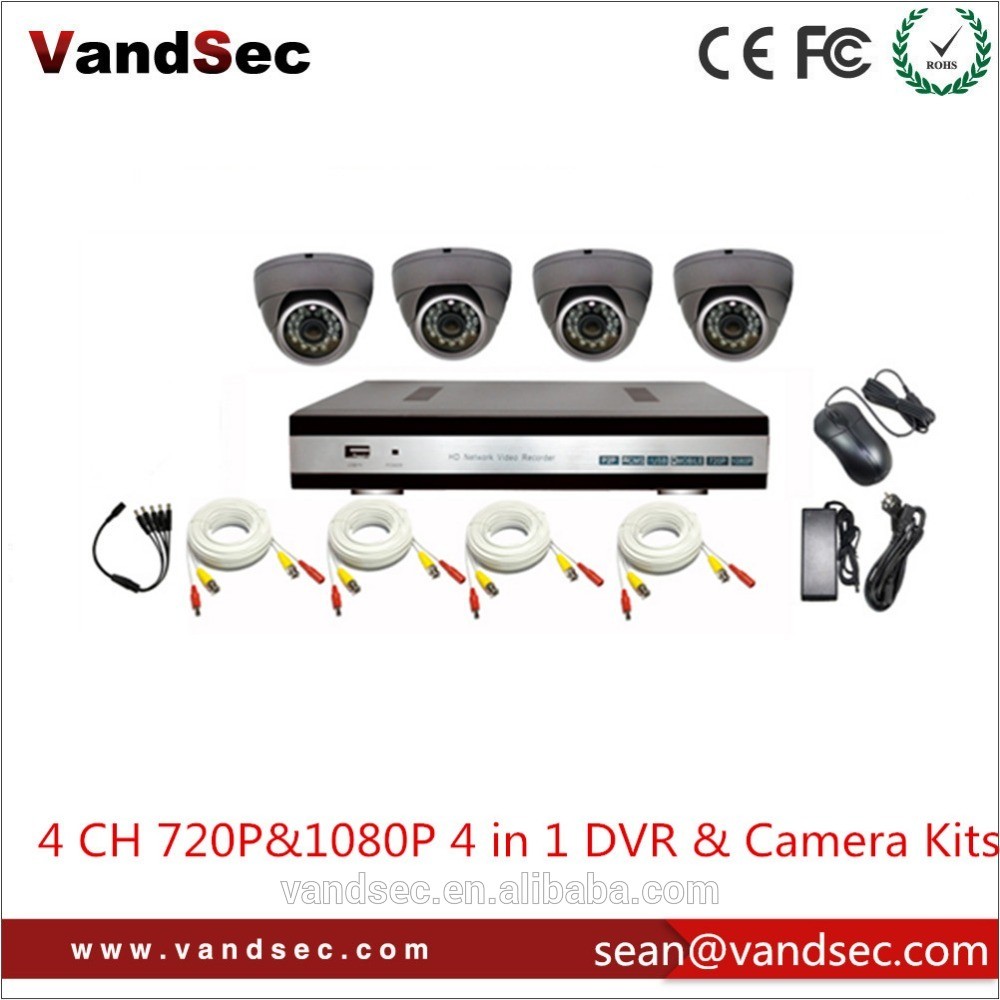

HD 4CH AHD DVR kits & security camera: 4 x Camera, 1 x DVR, 1x USB Mouse, 1x Power Adapter, 4 x60ft Cables, 1x 1 to 5 Splitter Cable
Delivery Time Shipped in 3 days after payment

4/8ch longse cctv security camera h.264 diy dvr kit

Product Description



h.264 diy dvr kit



* Solution: Hi3520D VD-3204HX
* Video Input/Output: BNC 4CH in, 1CH HDMI & VGA out
* Video Recording:
   720P: 1280x720 at 30 Fps(NTSC), 25 Fps(PAL)
   1080P: 1920x1080 at 12 Fps(NTSC), 12 Fps(PAL)
* Playback: 4CH x 720P at 30 Fps(NTSC), 25 Fps(PAL)
                    4CH x 1080P at 12 Fps(NTSC), 12 Fps(PAL)
* Multi-channel playback simultaneously, voice intercom, remote control(mobile & PC)
* iCloud Software, one-click online;28 operating Languages
* Support DHCP/PPPOE/DNS/DDNS/NTP/RTSP/IP right management/IP search/network alarm center,    RS485 PTZ
* Motion Detection, RJ45 (10M/100M), 1 SATA port(Max 4TB), USB2.0, support mobile view (Xmeye)















 AHD DVR specification:oem cctv security camera



           Model ID:VD-A6104HE
SystemMain ProcessorHi3521
Operation SystemEmbedded Linux
AHD Signal SystemAHD-M (720P) (Analog High Definition)
VideoVideo Input4CH BNC
Video Output1CH BNC / 1 x VGA / 1 x HDMI (1920*1080)
Video Distance75-3 Cable up to 500 Meters / Video No Decay and Distortion
AudioAudio Input4CH RCA
Audio Output1CH RCA
Bidirectional TalkYES
RecordingRecording Channel4CH 720P Real Time / 4CH D1 Real Time
Resolution720P (1280*720)
Frame RateNTSC 30fps / PAL 25fps
Recording ModeManual / Alarm / Video Detection / Continuous
Playback Channel4CH 720P/ 4CH D1 Real Time
PlaybackSearch ModeTime / Date / Alarm / Motion Detection / Exact Search
Playback ModeNormal Play / Fast Forward / Fast Rewind / Frame by Frame
AlarmAlarm InputN/A
Alarm OutputN/A
StorageHDD Interface1 x SATA Fixed HDD
CapabilitySATA HDD up to 4TB each
BackupUSB Disk2 x USB 2.0 port
Backup FormatH.264 (only for Playback Software - General H.264 Player V1.7.0.)
Backup ModeNetwork download / Flash USB / movable HDD/SATA HDD / DVD-RW
PTZPTZYES
ProtocolRS485
InterfaceRJ45 port / 10M / 100M / 1,000Mbps Ethernet
NetworkProtocolTCP/IP, DHCP, DDNS, DNS, PPPoE, UPNP, NTP, SMTP
CMS ProgramGeneral_CMS_Eng_V3.0.7.7.T (up to 500 Video channels Platform)
Mobile phone SupportiPhone / iPad, Android Smartphone & tablet
Computer System SupportWindows 2000, XP, Vista, 7, 8 / Mac OS x 10.6/10.7
Compatible BrowserGoogle Chrome, Internet Explorer 11, Mozilla Firefox, Safari
Free DDNSiCloud Free DDNS Server (P2P function)
IP Camera ProtocolONVIF 2.3 Version Platform Protocol (Digital Menu)
Simultaneous Remote Viewers6 Users Online
OthersOperating Temperature0°C ~ 55°C
Operating Humidity10% ~ 90%
Dimension255mm×230mm×45mm
Weight2.5 KG
USB MouseYES
HDD Screw4 PCS (1 Pack)
Quick Start Guide (QSG)YES

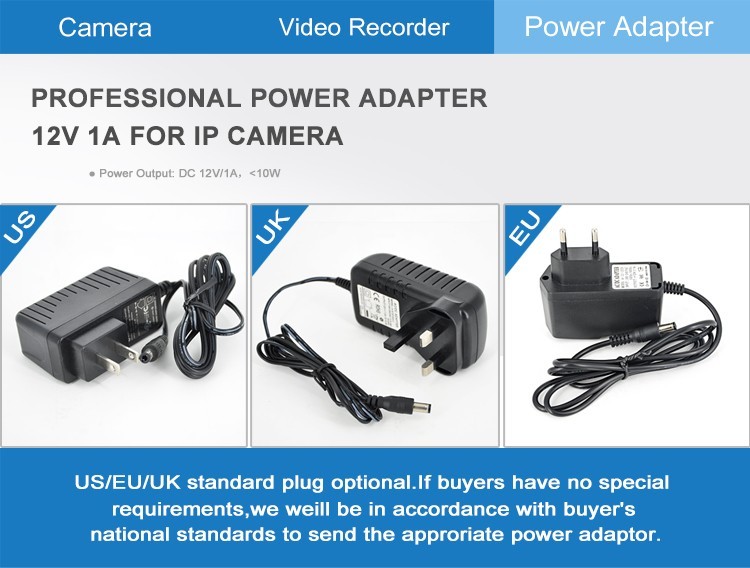

Power SupplyDC12V/2A Power Adapter







Packaging & Shipping

oem cctv security camera

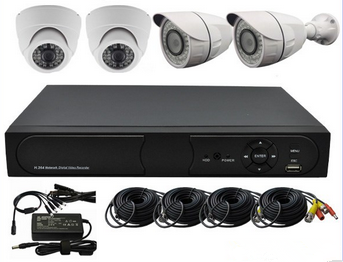

HD 4CH AHD DVR kits & security camera:

4 x Camera, 1 x DVR, 1x USB Mouse,

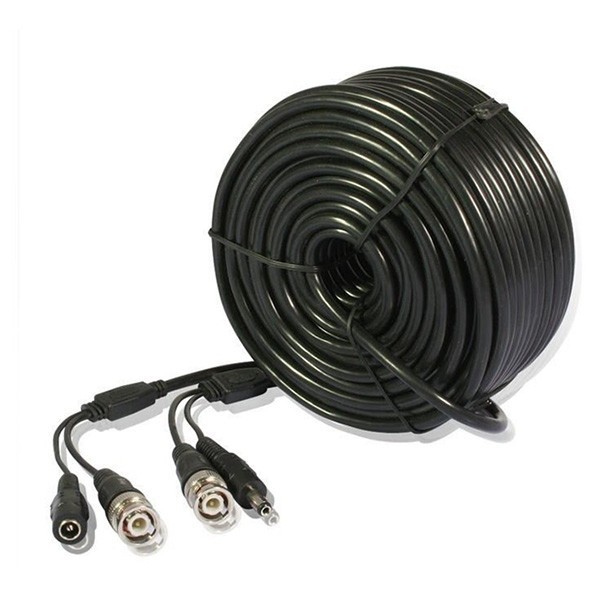

1x Power Adapter, 4 x60ft Cables, 1x 1 to 5 Splitter Cable









Company Information





Online Demo









Our Services





Ⅰ. ODM Service



  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double checkwith you

 before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and doublecheck

 with you before goods dispatch.



  3. Logo Printing:

  Your order over 50PCS total we can free print your logo, or will add $20 for silk print fee.

  Please send us .JPG format Logo within 2 colours, we will help you print on products andbox,

  double check with you before goods dispatch.



Ⅱ. OEM Service



  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double checkwith you

 before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print man







FAQ



1.DVR Card problem;
(1). Check the BNC connector of the DVR channels, if the image also have the image interference.,

it must be the DVR Card problem.
(2). DVR ground wire do not connect it well. Check the gournd wire if not , add it and restart the DVR without outage.

2.DVR single channel or few channel has image interference, flicking and a line in the middle of the image.
(1). Check the Security camera is working well;
(2). Check th BNC is good one;
(3). Check the video line.

3. PTZ Camera or High speed dome can not control it;
(1). Check DVR RS-485 port is working well;
(2). Check the Voltage of RS-485 beside the Zoom modules and PTZ Security ;
(3). Separate testing. Check each channel conncect to DVR, and find the one which can not control it;
(4). Check the decoder or hardware of ptz camera;
(5). Address, baud rate, and protocol.

4.Box camera, all in one camera no video image;
AC220 Voltage is regular;
Power supply output and input;
RS-485 or BNC Connector is right and well.

5.Black screen for monitor;
AC 220V voltage is regular.
Check the monitor on your computers.

6.DVR keyboard can not be controlled;
(1). DVR DC 12V is ok;
(2). Electrical current is OK.

7.DVR has Alarm noise.
(1). HDD has problems or fault;
(2). Video loss;
(3). Alarm signal has been triggered.
