Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: vandsec
  • Model Number: cctv security recording system kit
  • Video Input: 4CH x 1080P
  • Video Output: HDMI 1CH out; VGA 1CH out
  • Playback: 4CH D1/1CH 720P or 1080P
  • Megapixel: 2.0 Megapixel
  • lens: 3.6mm lens
  • IR Range: 30m
  • interface: 1 SATA interface Up to 4TB capacity
  • languages: Multi-languages
  • Warranty: 2 Years
  • Certificate: CE FCC RoHS

Packaging & Delivery

Packaging Details cctv security recording system kit
Packaging: 4 x Cameras, 1 x NVR, 1x USB Mouse, 1x IR Controller, 5x Power Adapter

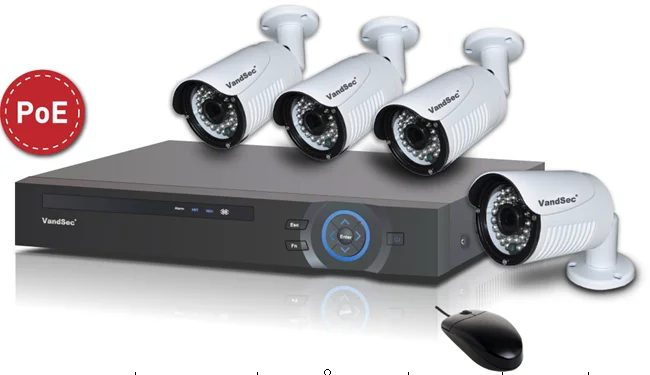

 Outdoor Wireless Wifi 720P HD IP camera 4ch poe nvr kit CCTV Camera Security system





Product Description



* P2P Cloud Service, Plug & Play
* 720P/ 960P/1080P  HD Real-time
* Remote View & Control, Anywhere, anytime.
* Motion Detection with Email Alert
* Day & Night Monitoring with IR-cut Auto Switch
* Support Andriod Mobile, Tablets, iPhone, iPad.



 IP Camera Specification:
Waterproof IR Bullet IP Camera; IR LED: F5X36pcs, IR Range: 20M
ModelVN-GB10-PVN-GB13-PVN-GB20-P
Image Sensor1/4" 1.0 Megapixel CMOS1/3" 1.3 Megapixel CMOS1/2.5"  2 Megapixel CMOS
Chipset SolutionOV9712 + Hi3518CAR0130 + Hi3518CHI 3516C  + IMX222
Resolution1280×720 (720P)1280×960 (960P) 1920×1080(1080P)
Minimum Illumination3300mV/Lux-sec 5500mV/Lux-sec 6200mV/Lux-sec
S/N Ratio39db44db51db
Frame Rate1.0 Megapixel @ 25FPS1.3 Megapixel @ 25FPS2 Megapixel @ 25FPS
Focus Modefixed
Day/NightIR cut filter with auto switch, IR sensor.
Video Outputanalog video out(optional), CVBS supported, PAL/NTSC (configurable)
Network1 RJ45 Ethernet interface, 10/100M adaptation
DelayWithin 0.3S
Video CompressionH.264 compression ,dual stream ( 0.1M-6Mpbs adjustable)
ProtocolProtocols: RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP
OnvifSupport Onvif 2.2
User PermissionMulti-user Classification Management
Power/CurrentDC 12V/1A
Consumption3.0W
Lens Board Lens 3.6mm/F2.0 (2M pixel)
IR Status IR LED: F5X36pcs, IR Range: 20M
Dimension (mm)92mm x 62mm x 58mm
Weight (g)600g
Temperature-10℃~ +60℃
Humidity0%-90%RH,Without Condensation

NVR Specification:





Packaging & Shipping

   We customize the package of the surveillance Camera for our clients:











 Surveillance Camera  shipping condition:



Express:


1. DHL is our first choice to dispatch goods. We have long relationship with Hong Kong DHL. Good price, good service. You will receive goods usually 4-5 days.


2. TNT is very economy by some European countries, usually TNT Economy is the cheapest way, you will receive goods in one week.


3. UPS is good choice for some of Asia & Europ countries. You will receive the goods around 4-5 days.


4. Fedex is a better way for some island countries. Fedex Economy also accepted. You will receive the goods around 4-7 days.


5. EMS usually for some countries hard to do customs clearance, such as Ukraine or Russia, you do not need pay tax. But, EMS only for small package.


Forwarder:


1. We have our own forwarder by air and by Sea for your convenience, we will quotation a competitive price to you.


2. If you have your own forwarder, we are happy to assistant your forwarder shipping goods.

Our Services



Ⅰ. ODM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Your order over 50PCS total we can free print your logo, or will add $20 for silk print fee.

  Please send us .JPG format Logo within 2 colours, we will help you print on products and box, double check with you before goods dispatch.



Ⅱ. OEM Service

  1. Label Printing:

  Please send us your SKU number or your Model ID, we will print label and double check with you before goods dispatch.



  2. Manual Printing:

  Please send us your modified manual after your payment, we will print manual and double check with you before goods dispatch.



  3. Logo Printing:

  Please send us .JPG format Logo within 3 colours, we will help you print on products and box, double check with you before goods dispatch.



  4. Box:

  Please send us your designed box based on our box demision and graph paper, we will send our box demision and graph paper first.



Company Information



As a high-tech enterprise, we are engaged in the R&D, manufacturing, and exporting of surveillance products. We focus on high-end CCTV Cameras, IP Cameras, DVRs, NVR, HD-SDI, HD-CVI Products and CCTV relatives, Vandsec always dedicated to the World’s safety market to create a better life

Established in Aug 2008, as a specialized manufacturer, Vandsec developed more than 200 different models of CCTV Products. With many years’ experience in exporting CCTV products, Vandsec products have been accepted by customers in over 150 countries, especially in Europe , USA and South America.







Trade shows



FAQ



1.DVR Card problem;
(1). Check the BNC connector of the DVR channels, if the image also have the image interference., it must be the DVR Card problem.
(2). DVR ground wire do not connect it well. Check the gournd wire if not , add it and restart the DVR without outage.

2.DVR single channel or few channel has image interference, flicking and a line in the middle of the image.
(1). Check the Security camera is working well;
(2). Check th BNC is good one;
(3). Check the video line.

3. PTZ Camera or High speed dome can not control it;
(1). Check DVR RS-485 port is working well;
(2). Check the Voltage of RS-485 beside the Zoom modules and PTZ;
(3). Separate testing. Check each channel conncect to DVR, and find the one which can not control it;
(4). Check the decoder or hardware of ptz camera;
(5). Address, baud rate, and protocol.

4.Box camera, all in one camera no video image;
AC220 Voltage is regular;
Power supply output and input;
RS-485 or BNC Connector is right and well.

5.Black screen for monitor;
AC 220V voltage is regular.
Check the monitor on your computers.

6.DVR keyboard can not be controlled;
(1). DVR DC 12V is ok;
(2). Electrical current is OK.

7.DVR has Alarm noise.
(1). HDD has problems or fault;
(2). Video loss;
(3). Alarm signal has been triggered.
